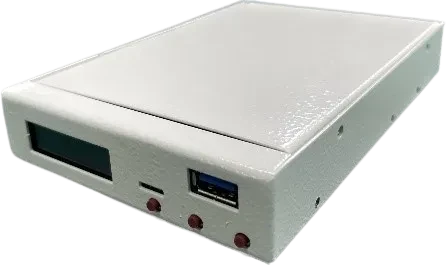

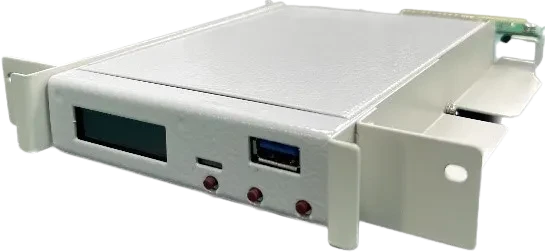

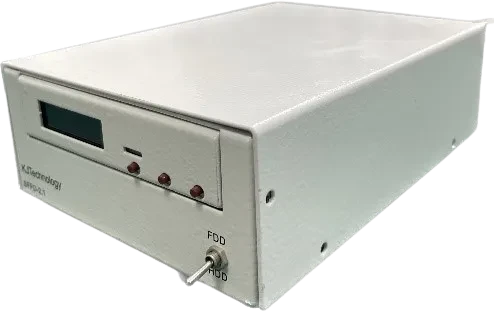

Flash FDD Replacement for NEC FC-98
A replacement solution that converts legacy floppy disk drive operation to USB memory-based storage.
Designed for TEL TRACK MARK series equipment using NEC FC-98 systems, the Flash FDD replacement supports continued operation and life extension of legacy semiconductor manufacturing equipment.
Product Overview
・Flash FDD replacement for TEL TRACK MARK series equipment
・Replaces conventional 3.5-inch floppy disk drives used in NEC FC-98 systems
・Supports 2DD / 2HD 3-mode formats (1.2MB / 1.44MB)
・Supports data storage using USB memory and memory cards
・File names can be changed according to the user's operating environment
・Supports continued use and life extension of legacy equipment
※ Actual compatibility depends on the equipment configuration and specifications of the existing FDD. Please contact KJT for detailed evaluation.
Flash FDD Replacement｜Features
The Flash FDD replacement provides a practical alternative to conventional 3.5-inch floppy disk operation in legacy NEC FC-98 systems.
01｜Eliminates Conventional 3.5-inch Floppy Disk Operation
Replaces legacy floppy disk operation with a modern Flash FDD storage solution.
02｜Supports 2DD / 2HD Formats
Supports 2DD / 2HD formats including 1.2MB and 1.44MB modes.
03｜USB Memory and Memory Card Support
Supports data storage using USB memory devices and memory cards.
04｜Flexible File Naming
Users can change file names according to their operating environment and requirements.
05｜Reduced Risk from Aging Floppy Disks
Helps reduce risks associated with floppy disk deterioration and read errors in legacy equipment.
06｜Supports Long-Term Equipment Operation
Supports long-term operation and improved maintainability of existing semiconductor manufacturing equipment.
Key Features
・No conventional floppy disk required
・2DD / 2HD 1.2MB / 1.44MB support
・USB memory and memory card support
・User-adjustable file names
・Reduced floppy disk deterioration and read-error risk
・Supports long-term maintenance of legacy equipment
Flash FDD Replacement｜Compatible Models
The Flash FDD replacement is designed for TEL TRACK MARK series equipment using legacy floppy disk drives.
Compatible Equipment
・TEL TRACK MARK Series
・MARK V
・MARK Vz
・MARK 8
・Other MARK series equipment equipped with FDD
Compatibility Evaluation
Compatibility may vary depending on the equipment configuration and specifications of the existing floppy disk drive.
Please provide the equipment model and existing FDD information so that KJT can evaluate compatibility and the appropriate replacement configuration.
Main Applications
・TEL TRACK MARK Series
・MARK V
・MARK Vz
・MARK 8
・Legacy MARK series equipment with FDD
※ Compatibility depends on the equipment configuration and specifications of the existing FDD. Please contact KJT for detailed evaluation.
Flash FDD Replacement｜Support Services
KJT provides support for introducing and replacing Flash FDD products in compatible TEL TRACK MARK series equipment.
01｜New Product Supply
New Flash FDD replacement products are available for compatible legacy equipment applications.
02｜Installation Support
Support is available for introducing the Flash FDD replacement into compatible existing equipment.
03｜Technical Support
KJT provides technical support related to Flash FDD replacement and compatibility with existing equipment.
04｜Replacement & Upgrade Proposal
KJT can review the existing FDD configuration and propose an appropriate replacement or upgrade solution.
05｜Long-Term Supply Support
Long-term supply support is available for compatible Flash FDD replacement applications.
For Compatibility Evaluation
Please provide available information about your existing equipment:
・Equipment model
・Existing FDD model / specification
・Current equipment configuration
・Current issue or replacement requirement
Looking for a Replacement for a Legacy FDD?
Contact KJT with your equipment model and existing FDD information.
We will review the configuration and evaluate the appropriate Flash FDD replacement solution.
※ Available support and replacement specifications vary depending on the equipment configuration and existing FDD specifications. Please contact KJT for detailed evaluation.
